Description

The Across International Clear5 Short Path Distillation Kit is a professional 5-liter molecular distillation system designed for efficient purification and separation of heat-sensitive compounds. Featuring heavy-wall borosilicate glass and a vacuum-jacketed vapor pathway, this short path distillation kit minimizes heat loss while maximizing condensation efficiency.

The newly redesigned vacuum-jacketed distillation head features an expanded vapor channel and increased internal diameter, allowing for improved vapor flow and more efficient fractionation during distillation. This design helps prevent clogging while ensuring smooth and consistent operation.

Constructed from high-quality borosilicate glass 3.3, the Clear5 system delivers excellent chemical resistance, thermal stability, and durability for laboratory and research environments.

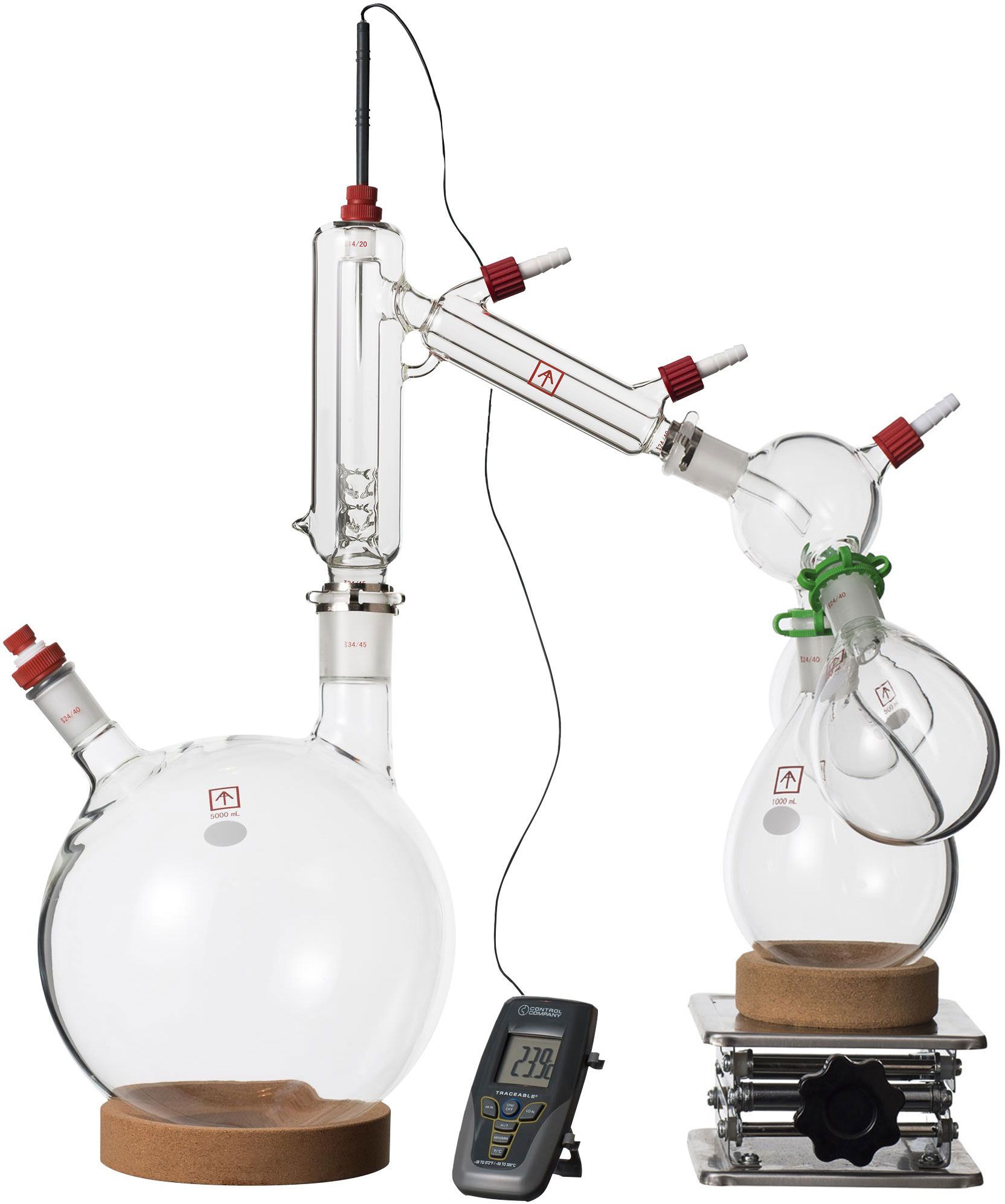

This kit includes the distillation head, 5L boiling flask, receiving flasks, distribution adapters, thermometer adapters, and laboratory support equipment, making it a complete solution for small-to-mid scale molecular distillation applications.

Key Features

Redesigned Vacuum Jacketed Distillation Head

  • Larger vapor channel improves vapor flow

  • Increased internal diameter enhances fractionation efficiency

  • Prevents clogging during distillation

  • Vacuum jacket reduces heat loss

Heavy Wall Laboratory Glassware

  • Made from borosilicate glass 3.3

  • Thick wall construction improves durability

  • Excellent resistance to thermal stress

High Efficiency Molecular Distillation

  • Vacuum jacketed vapor channel improves vapor condensation

  • Maintains stable temperatures during operation

Precision Temperature Monitoring

  • Thermometer ports located on both the boiling flask and distillation head

  • PTFE thermometer adapters with Viton gaskets ensure airtight sealing

Flexible System Connections

  • GL-16 adapters for recirculating fluid connections

  • 3/8" hose barb vacuum connections

  • Compatible with laboratory chillers and vacuum pumps

Vacuum Pump Protection

  • Compatible with optional T1 or T40 cold traps

  • Prevents vapors from contaminating vacuum pumps

Ideal Applications

  • Molecular distillation

  • Cannabis extraction and distillation

  • Essential oil purification

  • Pharmaceutical compound separation

  • Laboratory distillation research

  • Chemical purification processes

Glassware Specifications

  • Glass Material: High Borosilicate Glass 3.3

  • Distillation Head: 5L Vacuum Jacketed

  • Heavy wall laboratory glass construction

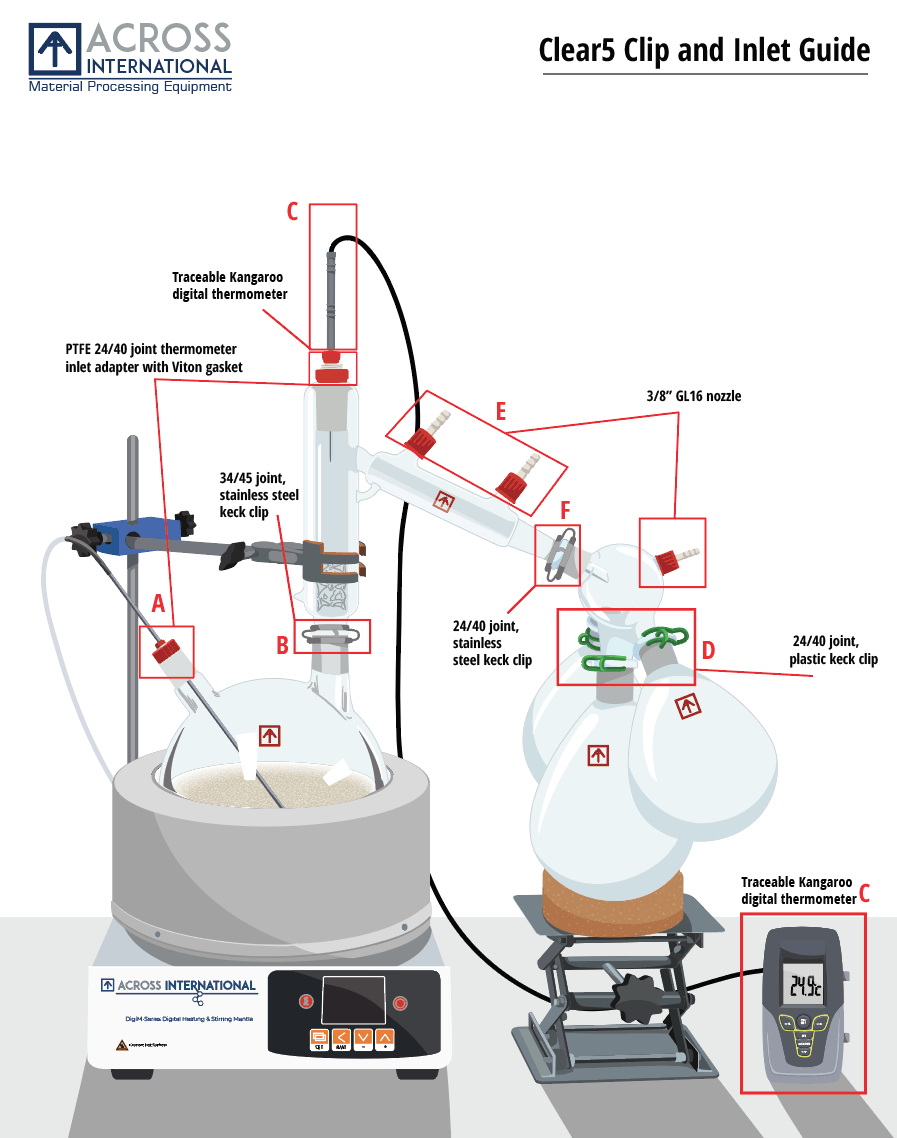

Joint Sizes

  • Boiling Flask to Distillation Head: 34/45 joint

  • Boiling Flask Thermometer Port: 24/40 joint

  • Distillation Head Thermometer Port: 14/20 joint

  • Receiving Flask Ports: 24/40 joints

System Connections

  • Recirculating Fluid Connection: GL-16 adapter

  • Vacuum Connection: 3/8" hose barb

Shipping Information

  • Shipping Dimensions: 29 × 23 × 13 inches

  • Shipping Weight: 20 lbs

What's Included

Distillation Head Assembly

  • 1 × Heavy Wall Vacuum Jacketed 5L Distillation Head

    • Multiple Vigreux fractionation columns

    • Integrated cooling channel

    • Thermometer port

Boiling Flask

  • 1 × Heavy Wall 2-Neck Round Bottom Flask

    • One vertical center neck

    • One angled side neck

Thermometer Adapters

  • 2 × PTFE 24/40 Thermometer Inlet Adapters with Viton Gaskets

Receiving System

  • 2 × 1000mL Heavy Wall Pear-Shaped Receiving Flasks (24/40 joint)

  • 1 × 500mL Heavy Wall Pear-Shaped Receiving Flask (24/40 joint)

Distribution Adapters

  • 1 × 250mL Distribution Adapter with Single Receiving Port and Vacuum Port

  • 1 × 250mL Distribution Adapter with Three Receiving Ports and Vacuum Port

Glass Accessories

  • 1 × 24/40 Pennyhead Glass Stopper

  • 1 × 24/40 Round-Top Glass Feeding Funnel

  • 1 × Glass 3/8" Hose Barb Tee Adapter

Laboratory Hardware

  • 2 × Stainless Steel Keck Clips (24/40 and 34/45)

  • 3 × Plastic Keck Clips (24/40)

Laboratory Support Equipment

  • 2 × Cork Ring Stands

    • One for 5L flask

    • One for 1L receiving flask

  • 1 × Stainless Steel Lab Jack

    • Size: 6 × 6 inches

    • Height Range: 3" – 9.5"

Measurement & Accessories

  • 1 × Traceable Kangaroo Digital Thermometer

  • 1 × Dow Corning High Vacuum Grease (5.3 oz)

Glassware Notice

Glassware does not include a manufacturer warranty.

Minor cosmetic blemishes may occur during manufacturing but will not affect functionality. All glassware is inspected before shipping to ensure no defective components are sent to customers.

Recommended Equipment (Sold Separately)

For complete system operation, the following equipment is recommended:

  • Vacuum pump

  • Recirculating chiller

  • Heating mantle

  • Cold trap
