Across International
Price:
$2,390.00

Description

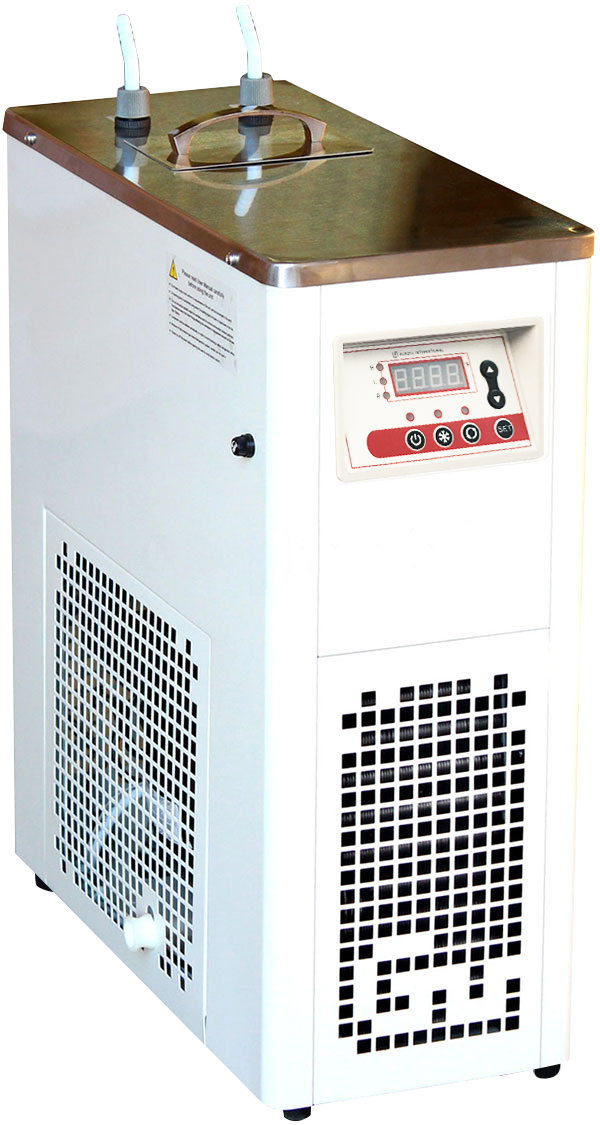

The Across International C15 Recirculating Chiller is a precision-controlled laboratory cooling system designed for applications requiring stable temperature regulation and continuous cooling performance. This compressor-based closed-loop chiller provides reliable cooling for laboratory equipment such as rotary evaporators, vacuum systems, ICP instruments, plasma etching systems, laser equipment, and jacketed reactors.

Powered by a high-performance compressor and digital microprocessor PID temperature controller, the C15 chiller delivers accurate temperature control and consistent cooling below ambient temperatures. The integrated recirculating pump provides strong flow rates, ensuring efficient heat removal for demanding laboratory applications.

This compact recirculating chiller is an excellent tap water replacement system, eliminating water waste while delivering stable and eco-friendly cooling performance.

Note: The ultimate temperature of -15°C (5°F) is measured under no-load conditions.

Key Features

True Thermostatic Temperature Control

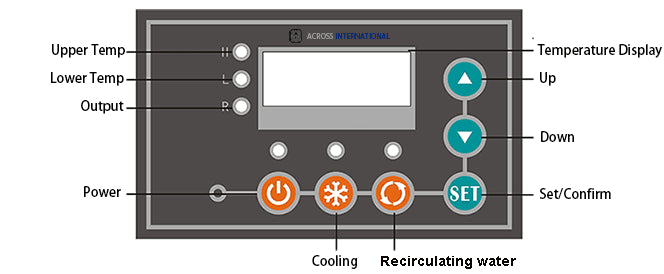

  • Microprocessor PID temperature controller

  • Provides precise and stable cooling performance

  • Maintains consistent temperature for sensitive laboratory equipment

Closed Loop Cooling System

  • Eliminates the need for tap water cooling

  • Reduces water consumption and operating costs

  • Environmentally friendly operation

Powerful Recirculating Pump

  • Centrifugal pump provides strong flow rates

  • Ensures efficient heat transfer and reliable cooling performance

Compact Laboratory Design

  • Small footprint saves valuable laboratory space

  • Durable all-steel construction for long-term reliability

360° Rotating Cooling Connections

  • Flexible tubing connections simplify installation

  • Compatible with a variety of laboratory instruments

Stainless Steel Reservoir

  • ANSI standard 304 stainless steel reservoir

  • Durable, corrosion-resistant construction

Eco-Friendly Refrigeration System

  • Uses R404A environmentally friendly refrigerant

  • Efficient compressor-based cooling system

Ideal Applications

  • Rotary evaporators

  • Analytical instrumentation

  • Laser etching equipment

  • ICP systems

  • Vacuum systems

  • Plasma etching

  • Jacketed chemical reactors

Technical Specifications

Temperature Control

  • Temperature Range: Ambient to -15°C (no load)

  • Temperature Accuracy: ±2°C

  • Temperature Sensor: Pt100

  • Controller Type: Digital Microprocessor PID

  • Display Unit: Celsius (°C)

Note: -15°C ultimate temperature is measured under empty load conditions.

Electrical Requirements

  • Voltage: 110V

  • Frequency: 60Hz

  • Phase: Single Phase

  • Power Consumption: 500 Watts

Compressor

  • Manufacturer: Embraco (Brazil)

  • Power: 115V 60Hz

  • Compressor Type: 1 HP

  • Refrigerant: R404A (Eco-friendly)

Cooling Capacity

  • Cooling Capacity @ 0°C: 400 Watts

Recirculating Pump

  • Manufacturer: Shanghai XinXiShan MP-20R

  • Pump Type: Centrifugal

  • Output Power: 15 Watts

  • Pump Speed: 2650 – 3100 RPM

  • Pumping Speed: 17 L/min (4.5 gallons/min)

  • Maximum Head: 6.6 ft (2 meters)

  • Maximum Pressure: 2.9 psi

Reservoir

  • Capacity: 3 Liters (0.8 gallons)

  • Dimensions: 5" × 11" × 5"

  • Material: Polished Type 304 Stainless Steel

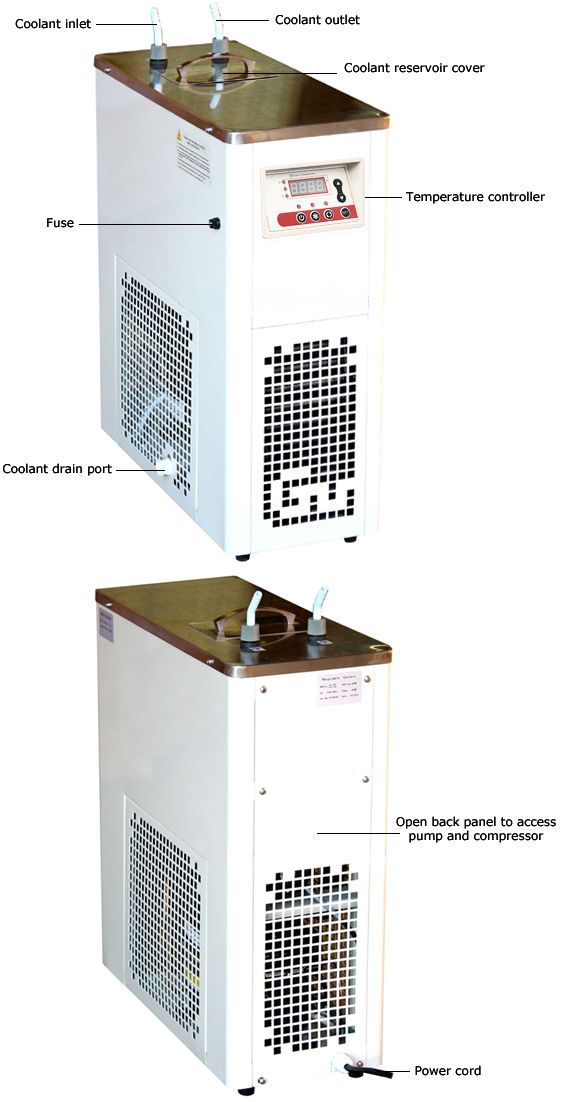

  • Chilling Fluid Connections: 3/8" hose barb × 2

Recommended Coolants

For temperatures above 50°F / 10°C

  • Distilled water

For temperatures between 50°F / 10°C and 5°F / -15°C

  • 50% ethylene glycol + 50% distilled water

Do NOT use Ai Chill-50 heat transfer fluid with this unit.

Environmental Operating Conditions

  • Operating Temperature: -15°C to 25°C

  • Maximum Humidity: <66% RH

  • Indoor laboratory use only

Dimensions & Weight

  • Unit Dimensions: 16" × 9" × 22"

  • Shipping Dimensions: 24" × 14" × 30"

  • Unit Weight: 60 lbs

  • Shipping Weight: 105 lbs

Safety Features

  • Compressor over-temperature protection

  • Short circuit protection

  • Ground fault protection

  • Over-current protection

  • Compressor delay start protection

Recommended Equipment Pairing

This chiller is recommended for use with:

  • Across International 2L SolventVap Rotary Evaporators

What's Included

  • 1 × Across International C15 Recirculating Chiller

  • 11 ft 3/8" Insulated Chilling Fluid Tubing

  • 2 × Rubber Chilling Fluid Connectors

  • 2 × Chilling Fluid Connector Gaskets

  • 1 × Cleaning Brush

  • 1 × Power Cord (110V)

  • 1 × User Manual

Warranty

  • 1 Year Manufacturer Warranty

Compliance & Certifications

  • UL 61010-1:2012

  • CSA C22.2 #61010-1:2012

  • ETL tested to UL & CSA standards
